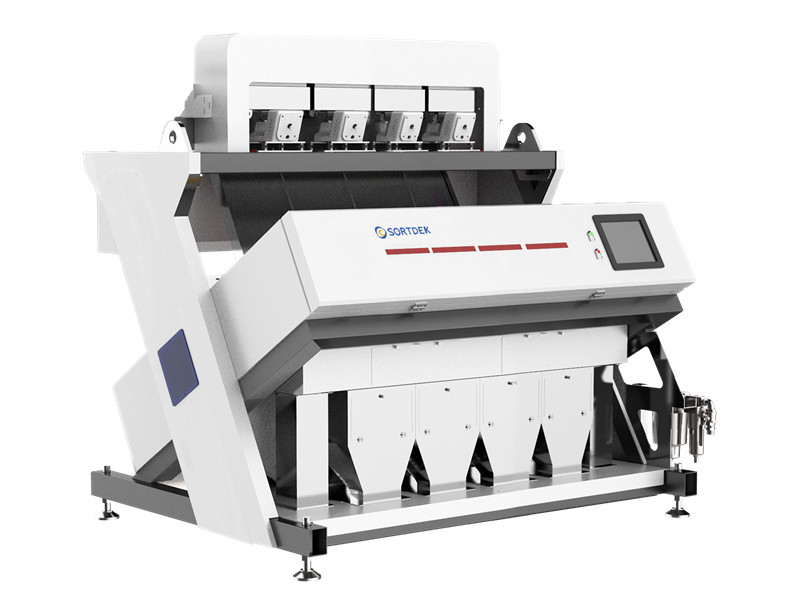

Sortdek 256 Channels AI Rice Sorting Machine, 4 Chutes Available For 3 Times Sorting
Rapid Series trichromatic intelligent color sorter is the effective and reliable model for a variety of rice sorting, such as raw rice, parboiled rice, basmati rice, indica rice, japonica rice, broken rice, etc. Ultra-brain intelligent recognition, combined with image capture AI self-learning algorithm, improve optical error and realize adaptive operation of color sorting. Two chutes to twelve chutes machine available.
Highlights:
Ultra-wide angle low distortion high speed lens
Super alloy high frequency intelligent ejector with 15 billion times working cycles
Reverse Sorting & Size Sorting
High performance to cost
Technial Paremeters:
| Model | Ejectors (No.) | Chutes (No.) | Power (Kw) | Voltage (V/Hz) | Air Pressure (Mpa) | Air Consumption (m³/min) | Weight (Kg) | Dimension (L*W*H,mm) |
| Rapid 2 | 128 | 2 | 0.9-1.5 | AC220/50 | 0.6~0.8 | ＜1 | 886 | 1403*1829*1887 |
| Rapid 3 | 192 | 3 | 1.3-2.2 | AC220/50 | 0.6~0.8 | ＜1.5 | 1024 | 1718*1829*1887 |
| Rapid 4 | 256 | 4 | 1.7-2.9 | AC220/50 | 0.6~0.8 | ＜2.0 | 1162 | 2033*1829*1887 |
| Rapid 5 | 320 | 5 | 2.2-3.7 | AC220/50 | 0.6~0.8 | ＜2.5 | 1300 | 2348*1829*1887 |
Features:
1. HD industrial LCD screen with Linux operating system, 24-bit true color display.
2. High precision image processing system includes ultra-wide angle low distortion high speed lens and ultra-color high-definition CCD sensor, AI self-learning algorithm for image recognition can correct the optical errors automatically in the process of image acquisition.
3. Automatically uniform feeding, flow rate controlled adaptively.
4. Intelligent variable light source with digital stepless automatic dimming, life span up to 120000 hours.
5. Equipped with super alloy high frequency intelligent ejector, life circle is more than 15 billion times, almost equal to machine life.
6. Barycenter & centroid coordinating algorithm, top-speed cross positioning the center point of material and flexibly remove defect accurately.
7. Intelligent air curtain dust removal from sorting chamber
8. AI deep learning and customized intelligent solutions for color sorting and size sorting both.
9. AI self-learning, one-key simulation, acquiring optimal sorting scheme; operation and commissioning is so easy.
10. Equipped with reverse sorting, multiple times sorting methodology.
11. More than 1000 sorting schemes can be stored and switched with one key.
12. Intelligent system, such as extremely simplified interface, remote control, auto-check & auto-tuning, automatic backup are available.
Configuration:
| Key Components | 12”LCD Touch Pannel | ● |
| Micron-sized Ultra-wide Angle Low Distortion High Speed Lens | ● |
| Ultra-color and HD CCD Sensor | ● |
| Super Alloy High Frequency Intelligent Ejector | ● |
| SMC® Pneumatic System | ● |
| Intelligent Variable LED Lighting | ● |
| Sorting Solutions | Flexible Removal | - |
| AI Self-learning(Image Capture Mode) | ● |
| RGB Color Sorting | ● |
| Shape+Size Sorting | ● |
| InGaAs Infrared Sorting | - |
| Life Span | Ejector | ＞15 Billion times |
| LED | ＞120,000 hours |
| Power Supply | ＞100,000 hours |
| Value-added Functions | Chute Cover | - |
| Feeder Shield | - |
| Upper Dust Suction System | - |
| Intelligent Air Curtain Dust Removal System | ● |
| Intelligent System | Multiple Sorting Mode | ● |
| Remote Control | ● |
| Auto-checking & Auto-tuning | ● |
| Smart backup | ● |
